Savvy Home - Mengontrol Suhu sederhana Menggunakan PHP MySQL
About This Project
Membuat “Rumah Pintar” aplikasi mengontrol suhu sederhana menggunakan PHP MySQL
Story
Membuat “Rumah Pintar” mengontrol suhu sederhana dengan menggunakan PHP MySQL dengan menggunakan beberapa alat yaitu:
- NodeMCU
- Jumper cables
- Breadboard
- Sensor Suhu LM 35
- LED

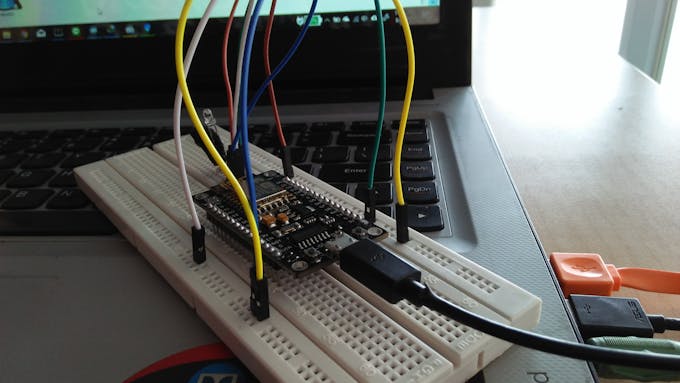

Hubungkan semua komponen sesuai skema yang ada. Hasil dari skema yang ada akan terbentuk seperti gambar diatas.
ketika sudah disusun seperti skema maka langkah selanjutnya adalah mengupload scrip/code yang telah ada ke nodeMCU, setelah selesai anda dapat melihat hasilnya di video berikut.
Untuk skrip PHPnya sudah ada diattachment beserta databasenya (mysql) tinggal langsung import saja. Jalankan aplikasinya via Browser.
Schematics
Code
Sketch
//include libraries
#include <ESP8266HTTPClient.h>
#include <ESP8266WiFi.h>
//Access point credentials
const char* ssid = "asus zenfone";
const char* pwd = "123456";
int sensor;
float temperature, refvoltage, temp;
int ledPin = 13; //connected to pin 7 in nodemcu 1.0 esp-12e module
WiFiServer server(80); // open port 80 for server connection
void setup()
{
Serial.begin(115200); //initialise the serial communication
delay(10);
//defining the pins, i/p and o/p
pinMode(ledPin, OUTPUT);
pinMode(A0, INPUT);
digitalWrite(ledPin, LOW);
refvoltage = 2.25; //reference voltage for temperature calculation
//connecting to wifi
Serial.println();
Serial.println();
Serial.print("Connecting to wifi ");
Serial.println(ssid);
WiFi.begin(ssid, pwd);
//attempt to connect to wifi
while (WiFi.status() != WL_CONNECTED)
{
delay(500);
Serial.print("."); //progress with dots until the wifi is connected
}
Serial.println("");
//while connected print this
Serial.println("Wifi connected");
//starting the server
server.begin();
Serial.println("Server started.");
//get the ip address and print it
Serial.print("This is your ip address: ");
Serial.print("http://");
Serial.print(WiFi.localIP());
Serial.println("/");
}
void loop()
{
WiFiClient client = server.available();
if (!client)
{
return;
}
//wait for the data to be sent from client
Serial.println("New client connection");
while(!client.available())
{
delay(1);
}
//Read the first line of the request
String request = client.readStringUntil('\r');
Serial.println(request);
client.flush();
int value = LOW; // set the thermometer off initially
sensor = analogRead(A0);
temperature = (refvoltage * sensor * 100) / 1023; //converting degree to celcius
//check the index of the browser and act accordingly
if (request.indexOf("/Thermo=ON") != -1)
{
digitalWrite(ledPin, HIGH);
value = HIGH;
sensor = analogRead(A0);
temperature = (refvoltage * sensor * 100) / 1023; //converting degree to celcius
//save the data to mysql, access the php file to write
HTTPClient http;
String url = "http://localhost/savvy/add.php?temp="+String(temp);
Serial.println(url);
http.begin(url);
//GET method
int httpCode = http.GET();
if(httpCode > 0)
{
Serial.printf("[HTTP] GET...code: %d\n", httpCode);
if(httpCode == HTTP_CODE_OK)
{
String payload = http.getString();
Serial.println(payload);
}
}
else
{
Serial.printf("[HTTP] GET... failed, error: %s\n", http.errorToString(httpCode).c_str());
}
http.end();
delay(3000);
}
if (request.indexOf("/Thermo=OFF") != -1)
{
digitalWrite(ledPin, LOW);
value = LOW;
}
temp = temperature;
//Return the response
client.println("HTTP/1.1 200 OK");
client.println("Content-Type: text/html");
if (request.indexOf("/AlwaysOn") != -1)
{
digitalWrite(ledPin, HIGH);
value = HIGH;
sensor = analogRead(A0);
temperature = (refvoltage * sensor * 100) / 1023; //converting degree to celcius
//temp = temperature;
client.println("Refresh: 5");
}
client.println("");
client.println("<!DOCTYPE HTML>");
client.println("<html>");
client.println("<body style=background-color:skyblue> </body>");
client.println("<style> h1 {text-align: center}</style>");
client.println("<style> h3 {text-align: center}</style>");
client.println("<style> b {text-align: center}</style>");
client.println("<style> p {text-align: center}</style>");
client.println("<head><style>div.relative{position:relative; left:200px; height:20px; width:350px; border:2px solid #73AD21;}</style></head>");
client.println();
client.println("<div class=relative> <b> UIN Suka Yogyakarta </b> </div>");
client.println("<div class=relative> Brian Rakhmat Aji </div>");
client.println("<div class = relative> /// </div>");
//client.println("<br>");
client.println("<br><br><h1>Savvy Home (Monitor Suhu)</h1><br><br>");
//client.println("<h3>Probable LM35 analog reading: <h3>");
//client.print(sensor); //analog reading of the sensor
//client.print("<br>");
client.print("<h3>Thermometer's current status: </h3>");
if(request.indexOf("/AlwaysOn") != -1)
{
client.print("<h3>Always On<h3>");
client.print("(Temperature updated every 5 seconds.)");
client.println("<h3>Current Temperature: <h3>");
client.print(temp);
client.print("<b> deg C.</b>");
//save the data to mysql, with http client
HTTPClient http;
String url = "http://localhost/savvy/add.php?temp="+String(temp); //access the php file to write data
Serial.println(url);
http.begin(url);
//using GET method to write to sql
int httpCode = http.GET();
if(httpCode > 0)
{
Serial.printf("[HTTP] GET...code: %d\n", httpCode);
if(httpCode == HTTP_CODE_OK)
{
String payload = http.getString();
Serial.println(payload);
}
}
else
{
Serial.printf("[HTTP] GET... failed, error: %s\n", http.errorToString(httpCode).c_str());
}
http.end();
//delay(3000);
}
else if(value == HIGH)
{
client.print("<h3>On Once<h3>");
//client.println("<br>");
client.println("<h3>Current Temperature: <h3>");
client.print(temp);
client.print("<b> deg C.</b>");
//delay(100);
}
else if(value == LOW)
{
client.print("<h3>Off<h3>");
// client.println("<br>");
client.println("<h3>Last measured temperature: <h3>"); //print the last value of temp
client.print(temp);
client.print("<b> deg C.</b>");
}
client.println("<br><br>");
//create buttons
client.println("<a href=\"/Thermo=ON\"\"><button>Turn On </button></a>");
client.println("<a href=\"/AlwaysOn\"\"><button>Keep On </button></a>");
client.println("<a href=\"/Thermo=OFF\"\"><button>Turn Off </button></a><br />");
client.println("<h3>Check the Temperature records by following the below link: <h3>");
client.println("<p>http://localhost/savvy/show.php</p>");
// if there are incoming bytes available from the server, read them and print them:
if (client.available())
{
char c = client.read();
client.print(c);
}
client.println("</html>");
client.println();
delay(1);
Serial.println("Client disconnected!");
Serial.println("");
}
Suhuhariini.php
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" name="viewport">
<title>Suhu Hari ini</title>
<!-- Favicon-->
<link rel="icon" href="../../favicon.ico" type="image/x-icon">
<!-- Google Fonts -->
<link href="https://fonts.googleapis.com/css?family=Roboto:400,700&subset=latin,cyrillic-ext" rel="stylesheet" type="text/css">
<link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet" type="text/css">
<!-- Bootstrap Core Css -->
<link href="../../plugins/bootstrap/css/bootstrap.css" rel="stylesheet">
<!-- Waves Effect Css -->
<link href="../../plugins/node-waves/waves.css" rel="stylesheet" />
<!-- Animation Css -->
<link href="../../plugins/animate-css/animate.css" rel="stylesheet" />
<!-- Custom Css -->
<link href="../../css/style.css" rel="stylesheet">
<!-- AdminBSB Themes. You can choose a theme from css/themes instead of get all themes -->
<link href="../../css/themes/all-themes.css" rel="stylesheet" />
</head>
<body class="theme-red">
<!-- Page Loader -->
<div class="page-loader-wrapper">
<div class="loader">
<div class="preloader">
<div class="spinner-layer pl-red">
<div class="circle-clipper left">
<div class="circle"></div>
</div>
<div class="circle-clipper right">
<div class="circle"></div>
</div>
</div>
</div>
<p>Please wait...</p>
</div>
</div>
<!-- #END# Page Loader -->
<!-- Overlay For Sidebars -->
<div class="overlay"></div>
<!-- #END# Overlay For Sidebars -->
<!-- Search Bar -->
<div class="search-bar">
<div class="search-icon">
<i class="material-icons">search</i>
</div>
<input type="text" placeholder="START TYPING...">
<div class="close-search">
<i class="material-icons">close</i>
</div>
</div>
<!-- #END# Search Bar -->
<!-- Top Bar -->
<nav class="navbar">
<div class="container-fluid">
<div class="navbar-header">
<a href="javascript:void(0);" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar-collapse" aria-expanded="false"></a>
<a href="javascript:void(0);" class="bars"></a>
<a class="navbar-brand" href="../../index.html">ADMINBSB - MATERIAL DESIGN</a>
</div>
<div class="collapse navbar-collapse" id="navbar-collapse">
<ul class="nav navbar-nav navbar-right">
<!-- Call Search -->
<li><a href="javascript:void(0);" class="js-search" data-close="true"><i class="material-icons">search</i></a></li>
<!-- #END# Call Search -->
<!-- Notifications -->
<li class="dropdown">
<a href="javascript:void(0);" class="dropdown-toggle" data-toggle="dropdown" role="button">
<i class="material-icons">notifications</i>
<span class="label-count">7</span>
</a>
<ul class="dropdown-menu">
<li class="header">NOTIFICATIONS</li>
<li class="body">
<ul class="menu">
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-light-green">
<i class="material-icons">person_add</i>
</div>
<div class="menu-info">
<h4>12 new members joined</h4>
<p>
<i class="material-icons">access_time</i> 14 mins ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-cyan">
<i class="material-icons">add_shopping_cart</i>
</div>
<div class="menu-info">
<h4>4 sales made</h4>
<p>
<i class="material-icons">access_time</i> 22 mins ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-red">
<i class="material-icons">delete_forever</i>
</div>
<div class="menu-info">
<h4><b>Nancy Doe</b> deleted account</h4>
<p>
<i class="material-icons">access_time</i> 3 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-orange">
<i class="material-icons">mode_edit</i>
</div>
<div class="menu-info">
<h4><b>Nancy</b> changed name</h4>
<p>
<i class="material-icons">access_time</i> 2 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-blue-grey">
<i class="material-icons">comment</i>
</div>
<div class="menu-info">
<h4><b>John</b> commented your post</h4>
<p>
<i class="material-icons">access_time</i> 4 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-light-green">
<i class="material-icons">cached</i>
</div>
<div class="menu-info">
<h4><b>John</b> updated status</h4>
<p>
<i class="material-icons">access_time</i> 3 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-purple">
<i class="material-icons">settings</i>
</div>
<div class="menu-info">
<h4>Settings updated</h4>
<p>
<i class="material-icons">access_time</i> Yesterday
</p>
</div>
</a>
</li>
</ul>
</li>
<li class="footer">
<a href="javascript:void(0);">View All Notifications</a>
</li>
</ul>
</li>
<!-- #END# Notifications -->
<!-- Tasks -->
<li class="dropdown">
<a href="javascript:void(0);" class="dropdown-toggle" data-toggle="dropdown" role="button">
<i class="material-icons">flag</i>
<span class="label-count">9</span>
</a>
<ul class="dropdown-menu">
<li class="header">TASKS</li>
<li class="body">
<ul class="menu tasks">
<li>
<a href="javascript:void(0);">
<h4>
Footer display issue
<small>32%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-pink" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 32%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Make new buttons
<small>45%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-cyan" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 45%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Create new dashboard
<small>54%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-teal" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 54%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Solve transition issue
<small>65%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-orange" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 65%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Answer GitHub questions
<small>92%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-purple" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 92%">
</div>
</div>
</a>
</li>
</ul>
</li>
<li class="footer">
<a href="javascript:void(0);">View All Tasks</a>
</li>
</ul>
</li>
<!-- #END# Tasks -->
<li class="pull-right"><a href="javascript:void(0);" class="js-right-sidebar" data-close="true"><i class="material-icons">more_vert</i></a></li>
</ul>
</div>
</div>
</nav>
<!-- #Top Bar -->
<section>
<!-- Left Sidebar -->
<aside id="leftsidebar" class="sidebar">
<!-- User Info -->
<div class="user-info">
<div class="image">
<img src="../../images/user.png" width="48" height="48" alt="User" />
</div>
<div class="info-container">
<div class="name" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">John Doe</div>
<div class="email">john.doe@example.com</div>
<div class="btn-group user-helper-dropdown">
<i class="material-icons" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">keyboard_arrow_down</i>
<ul class="dropdown-menu pull-right">
<li><a href="javascript:void(0);"><i class="material-icons">person</i>Profile</a></li>
<li role="seperator" class="divider"></li>
<li><a href="javascript:void(0);"><i class="material-icons">group</i>Followers</a></li>
<li><a href="javascript:void(0);"><i class="material-icons">shopping_cart</i>Sales</a></li>
<li><a href="javascript:void(0);"><i class="material-icons">favorite</i>Likes</a></li>
<li role="seperator" class="divider"></li>
<li><a href="javascript:void(0);"><i class="material-icons">input</i>Sign Out</a></li>
</ul>
</div>
</div>
</div>
<!-- #User Info -->
<!-- Menu -->
<div class="menu">
<ul class="list">
<li class="header">MAIN NAVIGATION</li>
<li><a href=""><i class="material-icons">home</i>
<span>Home</span></a>
</li>
<li class="active">
<a href="javascript:void(0);" class="menu-toggle">
<i class="material-icons">pie_chart</i>
<span>Data</span>
</a>
<ul class="ml-menu">
<li class="active">
<a href="http://localhost/savvy/pages/charts/chartjs.html">Data Hari Ini</a>
</li>
<li>
<a href="http://localhost/savvy/pages/history.php">History</a>
</li>
</ul>
</li>
</ul>
</div>
<!-- #Menu -->
<!-- Footer -->
<div class="legal">
<div class="copyright">
© 2016 <a href="javascript:void(0);">AdminBSB - Material Design</a>.
</div>
<div class="version">
<b>Version: </b> 1.0.4
</div>
</div>
<!-- #Footer -->
</aside>
<!-- #END# Left Sidebar -->
</section>
<section class="content">
<div class="container-fluid">
<div class="block-header">
<h2>
Data hari ini
</h2>
</div>
<div class="row clearfix">
<!-- Bar Chart -->
<div class="col s12">
<div class="card">
<div class="header">
<h2>Suhu hari ini</h2>
<ul class="header-dropdown m-r--5">
<li class="dropdown">
<a href="javascript:void(0);" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true" aria-expanded="false">
<i class="material-icons">more_vert</i>
</a>
<ul class="dropdown-menu pull-right">
<li><a href="javascript:void(0);">Action</a></li>
<li><a href="javascript:void(0);">Another action</a></li>
<li><a href="javascript:void(0);">Something else here</a></li>
</ul>
</li>
</ul>
</div>
<div class="body">
<canvas id="suhu" height="150"></canvas>
</div>
</div>
</div>
<!-- #END# Bar Chart -->
</div>
</section>
<!-- Jquery Core Js -->
<script src="../../plugins/jquery/jquery.min.js"></script>
<!-- Bootstrap Core Js -->
<script src="../../plugins/bootstrap/js/bootstrap.js"></script>
<!-- Select Plugin Js -->
<script src="../../plugins/bootstrap-select/js/bootstrap-select.js"></script>
<!-- Slimscroll Plugin Js -->
<script src="../../plugins/jquery-slimscroll/jquery.slimscroll.js"></script>
<!-- Waves Effect Plugin Js -->
<script src="../../plugins/node-waves/waves.js"></script>
<!-- Chart Plugins Js -->
<script src="../../plugins/chartjs/Chart.bundle.js"></script>
<!-- Custom Js -->
<script src="../../js/admin.js"></script>
<script src="../../js/pages/charts/chartjs.js"></script>
<!-- Demo Js -->
<script src="../../js/demo.js"></script>
</body>
</html>
History.php
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" name="viewport">
<title>History Suhu</title>
<!-- Google Fonts -->
<link href="https://fonts.googleapis.com/css?family=Roboto:400,700&subset=latin,cyrillic-ext" rel="stylesheet" type="text/css">
<link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet" type="text/css">
<!-- Bootstrap Core Css -->
<link href="http://localhost/savvy/plugins/bootstrap/css/bootstrap.css" rel="stylesheet">
<!-- Waves Effect Css -->
<link href="http://localhost/savvy/plugins/node-waves/waves.css" rel="stylesheet" />
<!-- Animation Css -->
<link href="http://localhost/savvy/plugins/animate-css/animate.css" rel="stylesheet" />
<!-- JQuery DataTable Css -->
<link href="http://localhost/savvy/plugins/jquery-datatable/skin/bootstrap/css/dataTables.bootstrap.css" rel="stylesheet">
<!-- Custom Css -->
<link href="http://localhost/savvy/css/style.css" rel="stylesheet">
<!-- AdminBSB Themes. You can choose a theme from css/themes instead of get all themes -->
<link href="http://localhost/savvy/css/themes/all-themes.css" rel="stylesheet" />
</head>
<body class="theme-red">
<!-- Page Loader -->
<div class="page-loader-wrapper">
<div class="loader">
<div class="preloader">
<div class="spinner-layer pl-red">
<div class="circle-clipper left">
<div class="circle"></div>
</div>
<div class="circle-clipper right">
<div class="circle"></div>
</div>
</div>
</div>
<p>Please wait...</p>
</div>
</div>
<!-- #END# Page Loader -->
<!-- Overlay For Sidebars -->
<div class="overlay"></div>
<!-- #END# Overlay For Sidebars -->
<!-- Search Bar -->
<div class="search-bar">
<div class="search-icon">
<i class="material-icons">search</i>
</div>
<input type="text" placeholder="START TYPING...">
<div class="close-search">
<i class="material-icons">close</i>
</div>
</div>
<!-- #END# Search Bar -->
<!-- Top Bar -->
<nav class="navbar">
<div class="container-fluid">
<div class="navbar-header">
<a href="javascript:void(0);" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar-collapse" aria-expanded="false"></a>
<a href="javascript:void(0);" class="bars"></a>
<a class="navbar-brand" href="../../index.html">ADMINBSB - MATERIAL DESIGN</a>
</div>
<div class="collapse navbar-collapse" id="navbar-collapse">
<ul class="nav navbar-nav navbar-right">
<!-- Call Search -->
<li><a href="javascript:void(0);" class="js-search" data-close="true"><i class="material-icons">search</i></a></li>
<!-- #END# Call Search -->
<!-- Notifications -->
<li class="dropdown">
<a href="javascript:void(0);" class="dropdown-toggle" data-toggle="dropdown" role="button">
<i class="material-icons">notifications</i>
<span class="label-count">7</span>
</a>
<ul class="dropdown-menu">
<li class="header">NOTIFICATIONS</li>
<li class="body">
<ul class="menu">
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-light-green">
<i class="material-icons">person_add</i>
</div>
<div class="menu-info">
<h4>12 new members joined</h4>
<p>
<i class="material-icons">access_time</i> 14 mins ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-cyan">
<i class="material-icons">add_shopping_cart</i>
</div>
<div class="menu-info">
<h4>4 sales made</h4>
<p>
<i class="material-icons">access_time</i> 22 mins ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-red">
<i class="material-icons">delete_forever</i>
</div>
<div class="menu-info">
<h4><b>Nancy Doe</b> deleted account</h4>
<p>
<i class="material-icons">access_time</i> 3 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-orange">
<i class="material-icons">mode_edit</i>
</div>
<div class="menu-info">
<h4><b>Nancy</b> changed name</h4>
<p>
<i class="material-icons">access_time</i> 2 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-blue-grey">
<i class="material-icons">comment</i>
</div>
<div class="menu-info">
<h4><b>John</b> commented your post</h4>
<p>
<i class="material-icons">access_time</i> 4 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-light-green">
<i class="material-icons">cached</i>
</div>
<div class="menu-info">
<h4><b>John</b> updated status</h4>
<p>
<i class="material-icons">access_time</i> 3 hours ago
</p>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<div class="icon-circle bg-purple">
<i class="material-icons">settings</i>
</div>
<div class="menu-info">
<h4>Settings updated</h4>
<p>
<i class="material-icons">access_time</i> Yesterday
</p>
</div>
</a>
</li>
</ul>
</li>
<li class="footer">
<a href="javascript:void(0);">View All Notifications</a>
</li>
</ul>
</li>
<!-- #END# Notifications -->
<!-- Tasks -->
<li class="dropdown">
<a href="javascript:void(0);" class="dropdown-toggle" data-toggle="dropdown" role="button">
<i class="material-icons">flag</i>
<span class="label-count">9</span>
</a>
<ul class="dropdown-menu">
<li class="header">TASKS</li>
<li class="body">
<ul class="menu tasks">
<li>
<a href="javascript:void(0);">
<h4>
Footer display issue
<small>32%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-pink" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 32%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Make new buttons
<small>45%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-cyan" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 45%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Create new dashboard
<small>54%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-teal" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 54%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Solve transition issue
<small>65%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-orange" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 65%">
</div>
</div>
</a>
</li>
<li>
<a href="javascript:void(0);">
<h4>
Answer GitHub questions
<small>92%</small>
</h4>
<div class="progress">
<div class="progress-bar bg-purple" role="progressbar" aria-valuenow="85" aria-valuemin="0" aria-valuemax="100" style="width: 92%">
</div>
</div>
</a>
</li>
</ul>
</li>
<li class="footer">
<a href="javascript:void(0);">View All Tasks</a>
</li>
</ul>
</li>
<!-- #END# Tasks -->
<li class="pull-right"><a href="javascript:void(0);" class="js-right-sidebar" data-close="true"><i class="material-icons">more_vert</i></a></li>
</ul>
</div>
</div>
</nav>
<!-- #Top Bar -->
<section>
<!-- Left Sidebar -->
<aside id="leftsidebar" class="sidebar">
<!-- User Info -->
<div class="user-info">
<div class="image">
<img src="../../images/user.png" width="48" height="48" alt="User" />
</div>
<div class="info-container">
<div class="name" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">John Doe</div>
<div class="email">john.doe@example.com</div>
<div class="btn-group user-helper-dropdown">
<i class="material-icons" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">keyboard_arrow_down</i>
<ul class="dropdown-menu pull-right">
<li><a href="javascript:void(0);"><i class="material-icons">person</i>Profile</a></li>
<li role="seperator" class="divider"></li>
<li><a href="javascript:void(0);"><i class="material-icons">group</i>Followers</a></li>
<li><a href="javascript:void(0);"><i class="material-icons">shopping_cart</i>Sales</a></li>
<li><a href="javascript:void(0);"><i class="material-icons">favorite</i>Likes</a></li>
<li role="seperator" class="divider"></li>
<li><a href="javascript:void(0);"><i class="material-icons">input</i>Sign Out</a></li>
</ul>
</div>
</div>
</div>
<!-- #User Info -->
<!-- Menu -->
<div class="menu">
<ul class="list">
<li class="header">MAIN NAVIGATION</li>
<li><a href=""><i class="material-icons">home</i>
<span>Home</span></a>
</li>
<li class="active">
<a href="javascript:void(0);" class="menu-toggle">
<i class="material-icons">pie_chart</i>
<span>Data</span>
</a>
<ul class="ml-menu">
<li>
<a href="#">Data Hari Ini</a>
</li>
<li class="active">
<a href="#">History</a>
</li>
</ul>
</li>
</ul>
</div>
<!-- #Menu -->
<!-- Footer -->
<div class="legal">
<div class="copyright">
© 2016 <a href="javascript:void(0);">AdminBSB - Material Design</a>.
</div>
<div class="version">
<b>Version: </b> 1.0.4
</div>
</div>
<!-- #Footer -->
</aside>
<!-- #END# Left Sidebar -->
</section>
<section class="content">
<div class="container-fluid">
<div class="block-header">
<h2>
History Data
</h2>
</div>
<!-- Exportable Table -->
<div class="row clearfix">
<div class="col-lg-12 col-md-12 col-sm-12 col-xs-12">
<div class="card">
<div class="header">
<h2>
History
</h2>
<ul class="header-dropdown m-r--5">
<li class="dropdown">
<a href="javascript:void(0);" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true" aria-expanded="false">
<i class="material-icons">more_vert</i>
</a>
<ul class="dropdown-menu pull-right">
<li><a href="javascript:void(0);">Action</a></li>
<li><a href="javascript:void(0);">Another action</a></li>
<li><a href="javascript:void(0);">Something else here</a></li>
</ul>
</li>
</ul>
</div>
<div class="body">
<div class="table-responsive">
<table class="table table-bordered table-striped table-hover dataTable js-exportable">
<thead>
<tr>
<th>No</th>
<th>Suhu</th>
<th>Datetime</th>
</tr>
</thead>
<tfoot>
<tr>
<th>No</th>
<th>Suhu</th>
<th>Datetime</th>
</tr>
</tfoot>
<tbody>
<?php
$no=1;
$stmt = $DB_con->prepare('SELECT * FROM temps ORDER BY id');
$stmt->execute();
if($stmt->rowCount() > 0)
{
while($row=$stmt->fetch(PDO::FETCH_ASSOC))
{
extract($row);
?>
<tr>
<th scope="row"><?php echo $no++; ?></th>
<td><?php echo $temp; ?></td>
<td><?php echo $day; ?></td>
</tr>
<?php
}
}
else
{
?>
<td colspan="3">No Data Found ...</td>
<?php
}
?>
</tbody>
</table>
</div>
</div>
</div>
</div>
</div>
<!-- #END# Exportable Table -->
</div>
</section>
<!-- Jquery Core Js -->
<script src="http://localhost/savvy/plugins/jquery/jquery.min.js"></script>
<!-- Bootstrap Core Js -->
<script src="http://localhost/savvy/plugins/bootstrap/js/bootstrap.js"></script>
<!-- Select Plugin Js -->
<script src="http://localhost/savvy/plugins/bootstrap-select/js/bootstrap-select.js"></script>
<!-- Slimscroll Plugin Js -->
<script src="http://localhost/savvy/plugins/jquery-slimscroll/jquery.slimscroll.js"></script>
<!-- Waves Effect Plugin Js -->
<script src="http://localhost/savvy/plugins/node-waves/waves.js"></script>
<!-- Jquery DataTable Plugin Js -->
<script src="http://localhost/savvy/plugins/jquery-datatable/jquery.dataTables.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/skin/bootstrap/js/dataTables.bootstrap.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/dataTables.buttons.min.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/buttons.flash.min.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/jszip.min.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/pdfmake.min.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/vfs_fonts.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/buttons.html5.min.js"></script>
<script src="http://localhost/savvy/plugins/jquery-datatable/extensions/export/buttons.print.min.js"></script>
<!-- Custom Js -->
<script src="http://localhost/savvy/js/admin.js"></script>
<script src="http://localhost/savvy/js/pages/tables/jquery-datatable.js"></script>
<!-- Demo Js -->
<script src="http://localhost/savvy/js/demo.js"></script>
</body>
</html>
Suhu.sql
-- phpMyAdmin SQL Dump
-- version 4.5.1
-- http://www.phpmyadmin.net
--
-- Host: 127.0.0.1
-- Generation Time: Aug 10, 2017 at 10:54 AM
-- Server version: 10.1.10-MariaDB
-- PHP Version: 5.6.19
SET SQL_MODE = "NO_AUTO_VALUE_ON_ZERO";
SET time_zone = "+00:00";
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8mb4 */;
--
-- Database: `thermometer`
--
-- --------------------------------------------------------
--
-- Table structure for table `temps`
--
CREATE TABLE `temps` (
`id` int(11) NOT NULL,
`temp` int(11) NOT NULL,
`day` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP
) ENGINE=InnoDB DEFAULT CHARSET=latin1;
--
-- Dumping data for table `temps`
--
INSERT INTO `temps` (`id`, `temp`, `day`) VALUES
(1, 30, '2017-08-01 02:24:49'),
(2, 31, '2017-08-01 03:03:07'),
(3, 30, '2017-08-01 04:13:29'),
(4, 30, '2017-08-02 04:13:29'),
(5, 32, '2017-08-03 04:13:29'),
(6, 31, '2017-08-03 04:13:29'),
(7, 30, '2017-08-06 04:13:29'),
(8, 31, '2017-08-06 04:13:29'),
(9, 30, '2017-08-07 04:13:29'),
(10, 30, '2017-08-07 04:13:29'),
(11, 31, '2017-08-07 04:13:29'),
(12, 30, '2017-08-07 04:13:29'),
(13, 31, '2017-08-09 04:13:29'),
(14, 31, '2017-08-09 04:13:29'),
(15, 30, '2017-08-09 04:13:29'),
(16, 30, '2017-08-09 04:13:29'),
(17, 32, '2017-08-09 04:13:29'),
(18, 31, '2017-08-09 04:13:29'),
(19, 32, '2017-08-09 04:13:29'),
(20, 33, '2017-08-09 04:13:29'),
(21, 33, '2017-08-09 04:13:29');
--
-- Indexes for dumped tables
--
--
-- Indexes for table `temps`
--
ALTER TABLE `temps`
ADD PRIMARY KEY (`id`);
--
-- AUTO_INCREMENT for dumped tables
--
--
-- AUTO_INCREMENT for table `temps`
--
ALTER TABLE `temps`
MODIFY `id` int(11) NOT NULL AUTO_INCREMENT, AUTO_INCREMENT=22;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
dbconfig.php
<?php
$DB_HOST = 'localhost';
$DB_USER = 'root';
$DB_PASS = '';
$DB_NAME = 'suhu';
try{
$DB_con = new PDO("mysql:host={$DB_HOST};dbname={$DB_NAME}",$DB_USER,$DB_PASS);
$DB_con->setAttribute(PDO::ATTR_ERRMODE, PDO::ERRMODE_EXCEPTION);
}
catch(PDOException $e){
echo $e->getMessage();
}
?>
Project ini selengkapnya dapat dilihat di [https://dirakit.hackster.io/brianrakhmat/savvy-home-mengontrol-suhu-sederhana-menggunakan-php-mysql-fa4b6c?ref=channel&ref_id=43423trending&offset=1](https://dirakit.hackster.io/brianrakhmat/savvy-home-mengontrol-suhu-sederhana-menggunakan-php-mysql-fa4b6c?ref=channel&ref_id=43423trending&offset=1)
Leave a Comment
